Za.Ve.Ro: Floating Ball Valves

Floating Screwed Ball Valves - Article 60

Composed from 2 body pieces and 1 closure so the valve is very strong.

Available from 1/4" to 5" screwed NPT - GAS/BSP -DIN, male and female; from Class 150 to 6000. Stainless steel or carbon steel and also special alloys.

Range of temperature: from -46°C to +250°C with peek seat.

Data Sheet

High Pressure Floating Ball Valves - Article 90

Similiar to Article 60 but the body is more solid and has a secondary seat with one o-ring between the body and the closure.

Available screwed or with integral nipples (PE - SW - BW - WE) from 1/4" to 2" for the high pressure from the ANSI 2500 to the API 15000.

Available also with metal-to-metal seat for high pressure and temperature.

Data Sheet

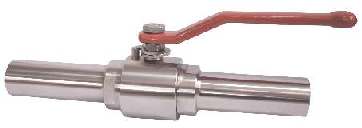

Floating Ball Valves with Integral Nipples - Article 62

Similiar to Article 60 body with the same performance. Available only with integral nipples (standard long 80/100 mm). The nipples are integral pieces with the body and the closure there are no weld, this grant hardness and avoid weld problem.

Available also with metal to metal seat from 1/4" to 5"

Data Sheet

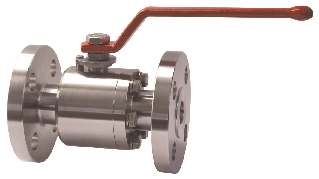

Flanged Ball Valves - Article 75

Flanged ball valves available in 2 or 3 pieces, full and reduced port. Available from 1/2" 150 to 8" 150 over this the valves are trunnion construction.

Available also with metal-to-metal seat and other options (also flanged PN).

Data Sheet

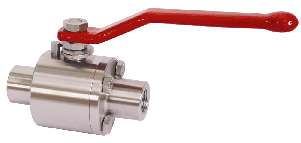

Bolted Ball Valves Screwed and Weld Ends - Article 22

Ball valves with screwed and weld ends, body and closure are bolted, 2 or 3 pieces.
Available from 1/4" to 2" with soft or metal to metal seat. Full or reduced bore.

Data Sheet

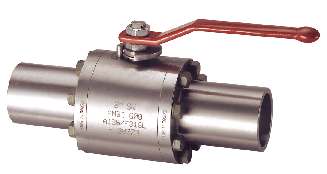

Floating Ball Valves with Swing-Out Body

Floating bolted ball valves, screwed or to weld end, full or reduced port.

Removing all the bolts, the body can swing out from the connections installed. This enables a faster way to do maintenance to the body; a rapid change of the soft seat and the body is ready to operate. If you have welded connections you don't have to have it cut from the plant.

Available from 1/4" to 2", always in three pieces with soft seat or metal to metal.

Data Sheet
